Ford Anglia 105E - Technical - Pillar Badge

On this page we will try and identify the various badges that were used on the Ford Anglia Saloon, Estate and Van over the years of its production run. The badges were made of metal with pins on the back. These pins were inserted into plastic cups located in holes within the bodywork. This page concentrates on the side "Pillar" badges

The "Pillar" badge is located on the rear "C" Pillar of the Saloon and Torino, between the rear side window and the reverse raked window. (These badges did not appear on the Van or Estate variants). The "Pillar" badges could be one of three designs, depending on the status of your Ford Anglia Saloon. The badges appeared on both sides of the vehicle.

Pillar Badge

Ford Anglia Standard - (Saloon)

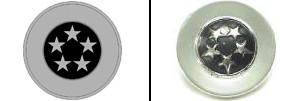

The Ford Anglia Standard sported a single piece round chrome badge. The centre of the badge contained 5 stars on a black background with the words "Product of Ford Motor Co. Ltd." engraved around the outside. Standard Pillar Badge

The badge was changed in September of 1961 with the introduction of the Ford Logo badge on the front wing. The pillar badge still contained the 5 stars, but the words were deleted from around the outside.
This badge stayed with the Anglia until production ceased in 1967.
Standard Pillar Badge


Ford Anglia deluxe - (Saloon)

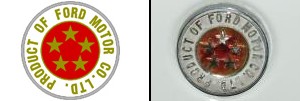

The Ford Anglia deluxe sported a two piece round badge. A metal backing piece held a plastic badge insert. The centre of the badge contained 5 gold stars on a red background with the words "Product of Ford Motor Co. Ltd." around the outside, also in gold, on a white background. deluxe Pillar Badge

The badge was changed in September of 1961 with the introduction of the Ford Logo badge on the front wing. The pillar badge still contained the 5 stars, but the words were deleted from around the outside.
This badge stayed with the Anglia until production ceased in 1967.
deluxe Pillar Badge


Ford Anglia Super - (Saloon)

When the Ford Anglia Super was released in 1962, it sported a new two piece round badge. The chrome outer section consisted of a hollow circle with two chevrons, which pointed towards the front of the vehicle. The central plastic insert contained the word "SUPER" in white on a black background, with a white band around the edge. Super Pillar Badge

Ford Anglia Torino

The Ford Anglia Torino used the same pillar badge as the deluxe. The centre of the badge contained 5 gold stars on a red background with a white outer ring.
This badge stayed with the Anglia until production ceased in 1967.
deluxe Pillar Badge

Modern reproductions of these badges are available from various sources on the Internet,
including the Spares Department of the
Ford Anglia 105E Owners Club.

(Article Copyright © MellY Designs - Please do not Reproduce without Permission)
